UHPPOTE Auto-Door Control System Wireless Hand Pressure Switch & Receive Controller
Product details
| Management number | 209145108 | Release Date | 2026/03/29 | List Price | $22.40 | Model Number | 209145108 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

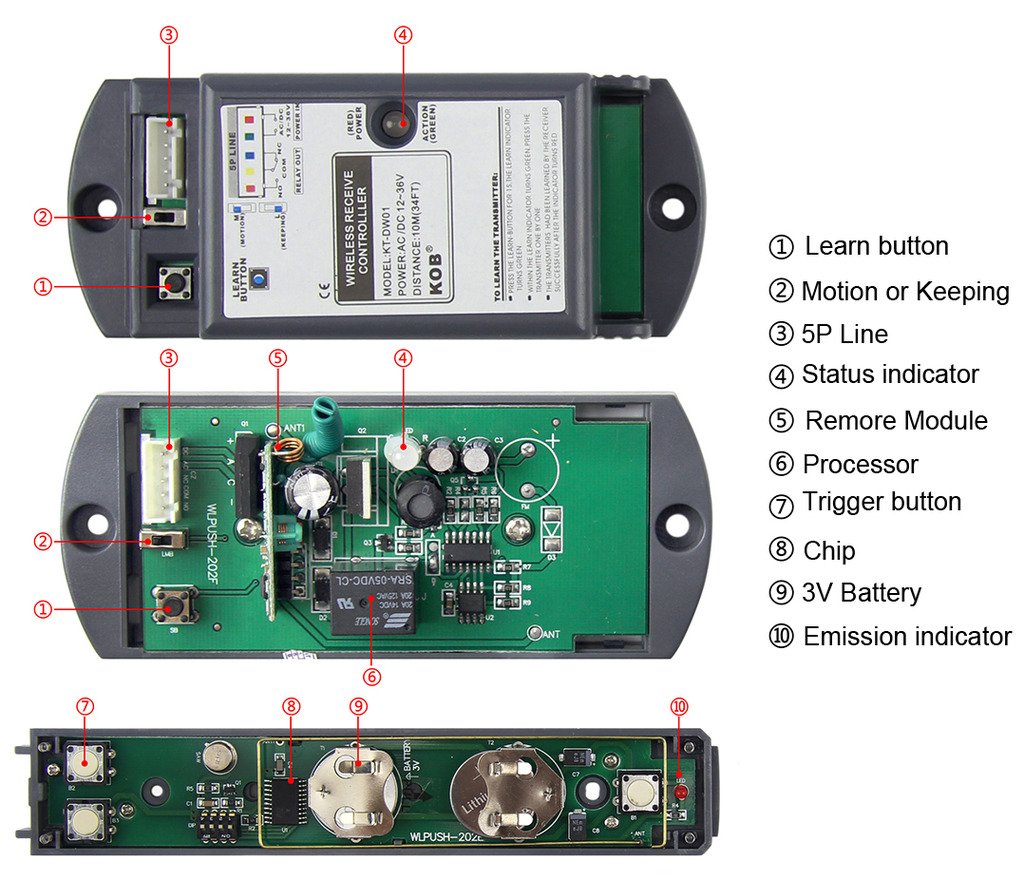

Specifications: Power: AC/DC12-36V (Wireless receiver controller) Current: 15mA(Standby); 80mA(Working) Main contact capacity: 20A 14VDC (Wireless receiver controller) Secondary contact capacity: 1A 24VDC (Wireless receiver controller) Contact pull hold time: 2S (Wireless receiver controller) Battery: 6V (Wireless hand pressure switch) Emission current: 3.9mA (Wireless hand pressure switch) Battery life: approx. 300 days if press 500 times everday (Wireless hand pressure switch) Distance: 10m / 34ft Working temperature: -42℃~45℃ / -43.6℉~113℉ Working humidity: 10~90%RH Hand pressure switch size: 203x40x13mm / 7.99x1.57x0.51in (LxWxH) Receiver controller size: 123x50x32mm / 4.84x1.97x1.26in (LxWxH)To learn the transmitter: Press the LEARN-BUTTON for 1S, the leare indicator turns green Within the learn indicator turns green, press the transmitter one by one The transmitters had been learned by the receiver successful after the indicator turns redPackage include: 2 x Wireless hand pressure switch 1 x Wireless receive controller
- ADOPT uniformity ferquency, high stability of wireless signal receiving and sending
- Siludification of PU varnished shell, dapper apperence with anti-off screw
- Panel pushing with low-power consumption, long service life battery
- With lagre capacity output, available to be used with autodoor, electric lock and access controller
- Function switch with voice indicatior, power indicatior turns green to confirm the validity of operation.
| UPC | 757450215729 |
|---|---|
| Model | UT-CNB-202E |
| Wattage | 280 watts |
| Terminal | Screw |
| Brand Name | UHPPOTE |
| Unit Count | 1.0 Count |
| Switch Type | Pressure Switch, Temperature Switch |
| Manufacturer | UHPPOTE |
| Actuator Type | Push Button |
| Mounting Type | Panel Mount |
| Connector Type | Screw,wireless |
| Current Rating | 20 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 4.84 x 1.97 x 1.26 inches |
| Operating Voltage | 36 Volts |
| Connectivity Protocol | Wi-Fi |
| International Protection Rating | IP67 |
