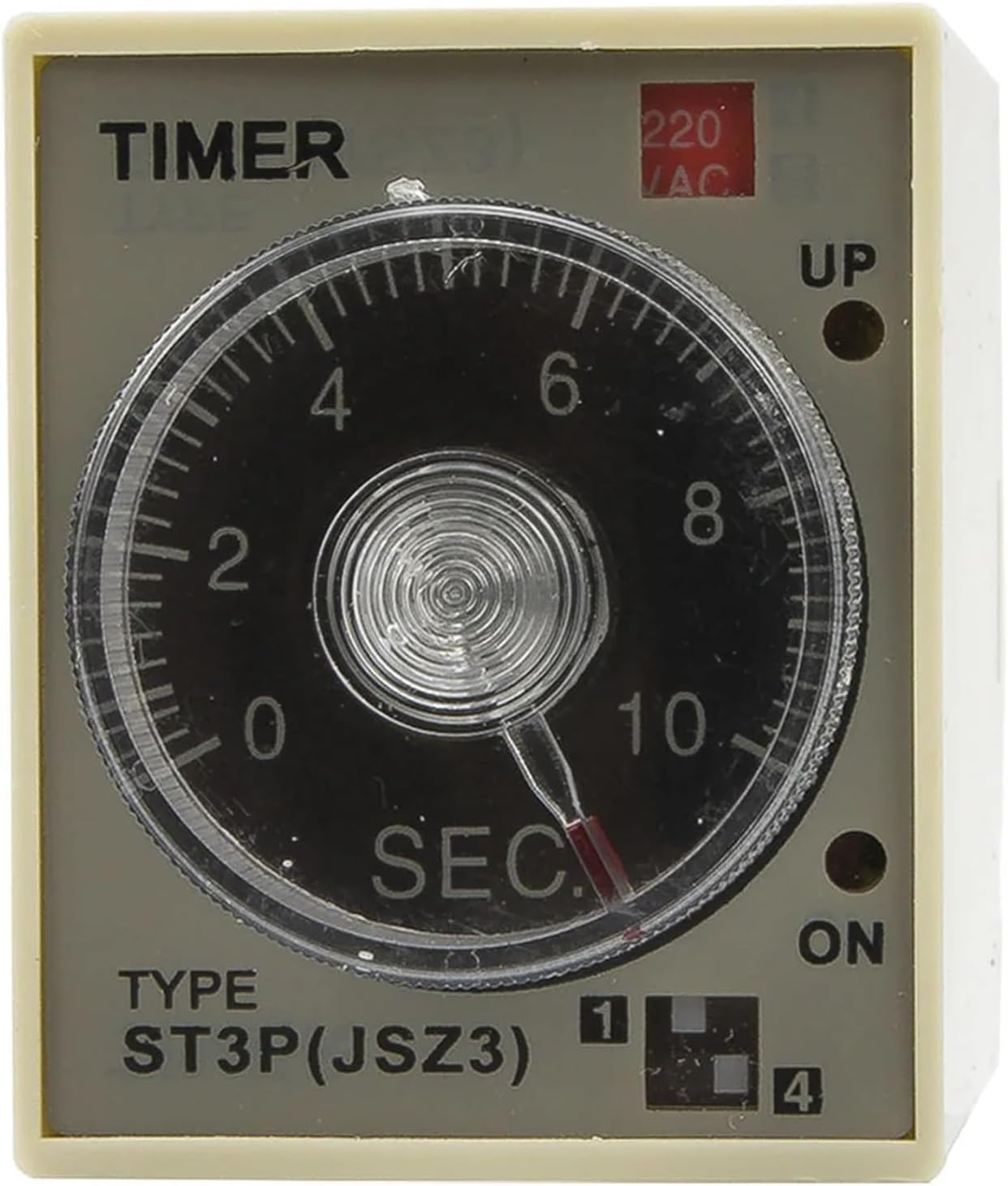

ST3PC-B AC 220V time Relay ST3PC Series 220VAC Timer delay time 1s/10s/60s/6min (Size : 380VAC)

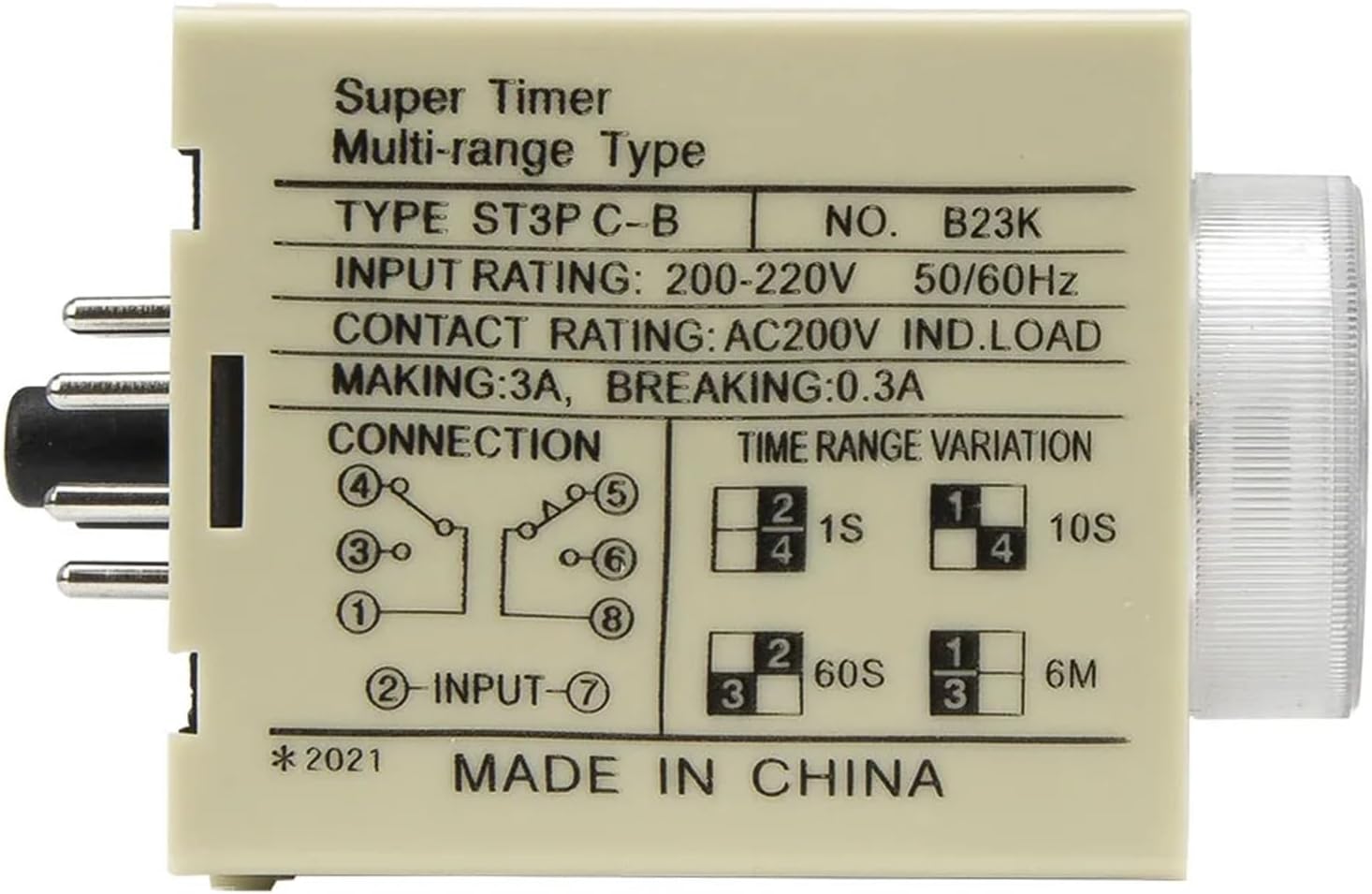

Turn Signal RelaysST3PC series time relayContact form and delay timeModel numberContact formDelay timeRelated productST3PC-AOn delay SPDT and instantaneous SPDT0.5s/5s/30s/3minOrderST3PC-BOn delay SPDT and instantaneous SPDT1s/10s/60s/6minVisiting...ST3PC-COn delay SPDT and instantaneous SPDT5s/50s/5min/30minOrderST3PC-DOn delay SPDT and instantaneous SPDT10s/100s/10min/60minOrderST3PC-EOn delay SPDT and instantaneous SPDT60s/10min/60min/6hOrderST3PC-FOn delay SPDT and instantaneous SPDT2min/20min/2h/12hOrderST3PC-GOn delay SPDT and instantaneous SPDT4min/40min/4h/24hOrderST3PC-B time relay model number legendST3PC-BParent Model NumberSupply voltage-220VAC: 220VAC-24V: 24VAC/DC-12V: 12VAC/DC-110VAC: 110VAC-380VAC: 380VACGeneralModel numberST3PC seriesSupply voltage12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 VdcTolerance-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltagePower consumption3W maxSetting methodKnobIndication methodLEDExternal dimensions50x40x57.5 mmPerforate dimensions 50.5 1/0x40.5 1/0 mmContact rating3A@250Vac, 5A@28VdcRepeat accuracy±0.3%, ±0.05 secSetting error±0.5%, ±0.05 secTermination8 pinsMountingPanel, din railMatched socketPF083A,PF085A,US-08Matched mounting accessoriesFTRA01 mounting fastener,FTRA02 mounting panelMechanical life1x106Electrical life1x105Operating temperature0 to 50 °C (32 to 122 °F)Operating humidity95% RH max, non-condensingAlias nameST3PC series timerST3PC-B time relay related productsNoModel NumberSupply VoltageRelated Product1 ST3PC-B-220VAC(-24V, -12V, -11
