SG-003A 0-24V Signal Generator Adjustable Current Voltage Simulator 4-20mA Analog Sources Transmitter Process Control Signal Calibrator

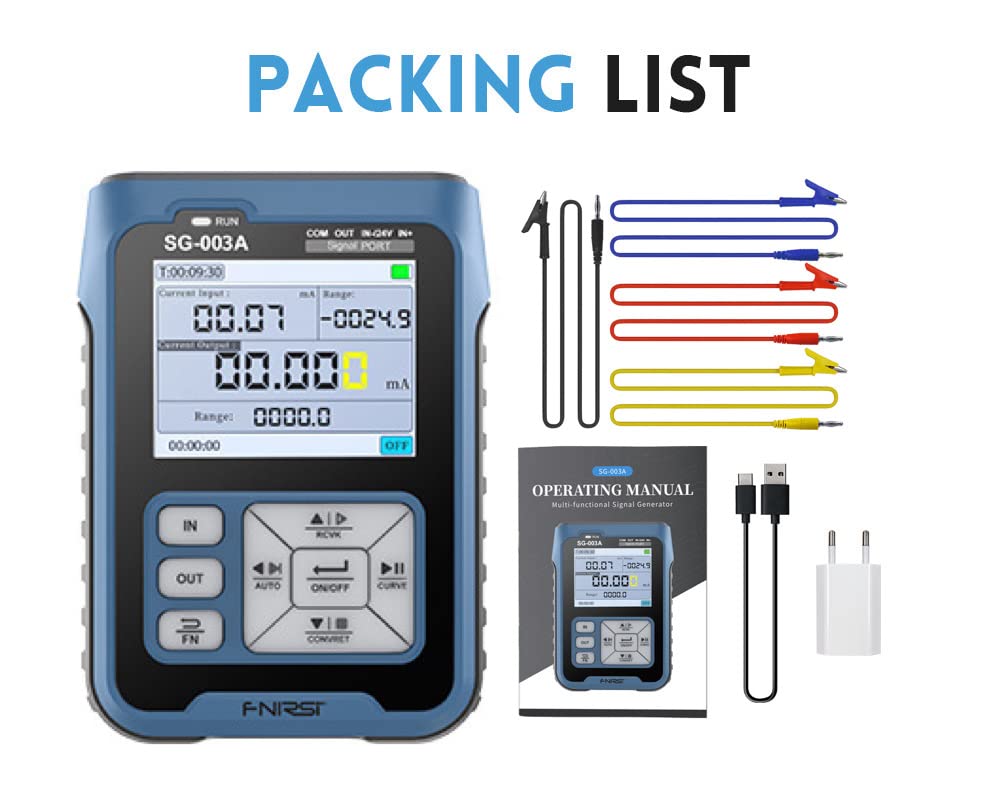

Features ? Conventional signal input output functions ? Automatic output of voltage and current ? Three modes of single drop and cycle ? Input to output conversion, voltage conversion active current mode, passive mode current conversion voltage mode ? Custom output function, setup of the upper lower output limits ? Voltage input diagram, current input diagram, frame rate of 10 frames ? Set frequency and duty cycle respectively for PWM output ? Real-time curve observation of changes in voltage current ? Built-in rechargeable 3000mHA lithium battery ? HD TFT color LCD screen, resolution of 240*320 ? Low power consumption: max. 0.32W Package Included ? 1* Multifunctional Signal Generator ? 4* Test Clip ? 1* Type-C Charging Cable ? 1* Charging Plug ? 1* Operating Manual

• Mainly applicable to debugging of industrial PLC, process instrument, electric valve, etc
• Automatic output of voltage and current, with three modes of single drop and cycle; Free setup of upper and lower output limits
• With input to output conversion, voltage conversion active current mode, passive mode and current conversion voltage mode

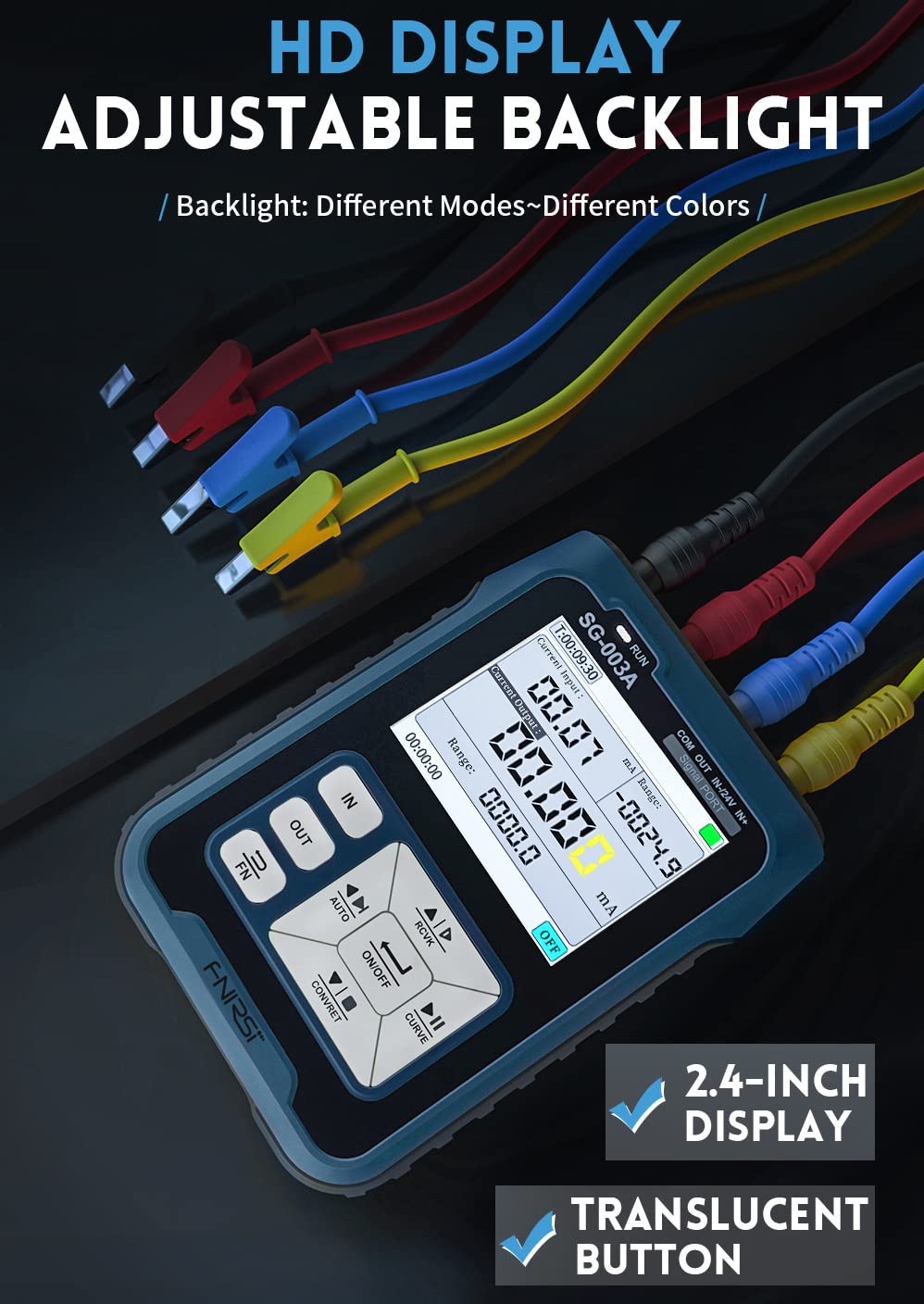

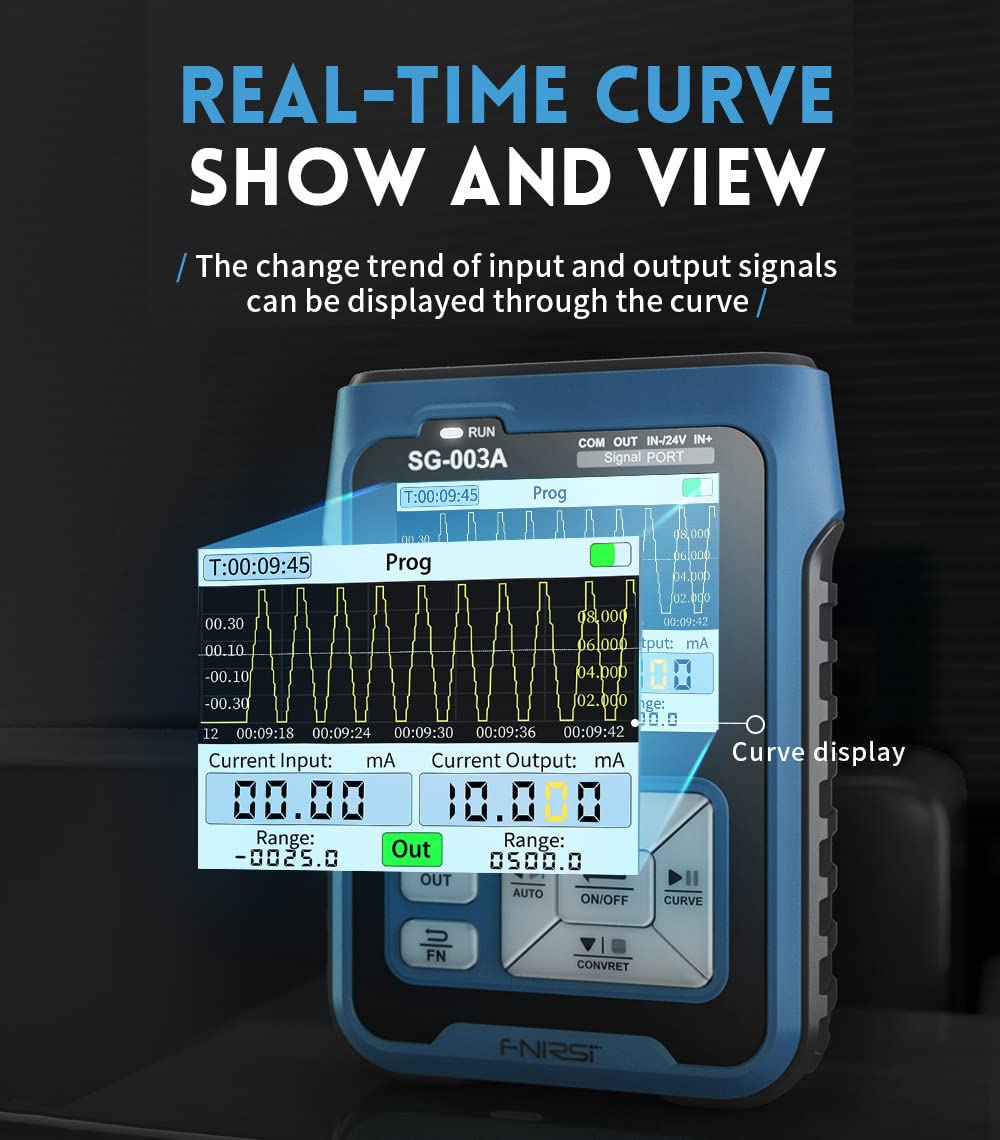

• User-friendly Interface with adjustable backlight for even clear reading in dark; HD TFT color LCD screen; Real-time curve observation of changes in voltage and current
• Powered by a rechargeable 3000mHA lithium battery with type-C port, low power consumption for long working hours and standby time as long as 26 hours
