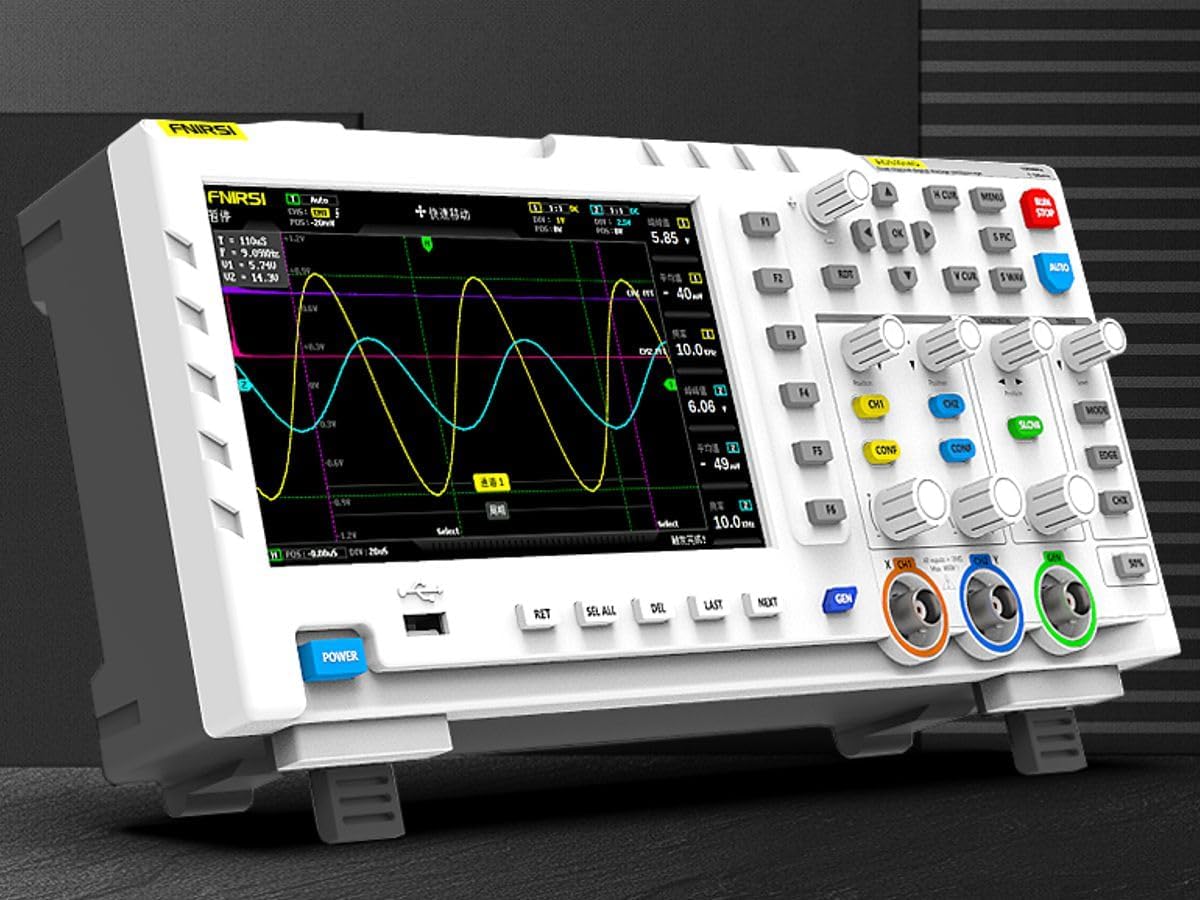

CANADUINO® 1014D Digital Oscilloscope and Function Generator 2-in-1

The 1014D is an ultra-light, ultra-versatile digital oscilloscope and function generator for beginners and advanced users. The device combines a 100MHz / 1GS/s digital 2-channel oscilloscope with storage for about 1000 screenshots and a digital DDS 12-function generator. The 1014D Oscilloscope and Function Generator comes with 5V power supply, USB cable, and 2 probes (1x and 10x). The oscilloscope inputs are protected against a high voltage of up to 400V. The USB power supply comes with the nice advantage of allowing for powering the scope from a USB booster pack or the USB charging port in your vehicle (2.1A), making it a mobile scope without the disadvantages of the smaller handheld units. Make sure you read the manual carefully. It contains some very important hints and instructions, especially in case you are working with higher voltage and higher frequency. Specifications Oscilloscope: Analog bandwidth 100MHz * 2 Number of channels 2 channels Maximum real-time sampling rate 1GSa/s Vertical sensitivity 50 mV/div ~ 500 V/div Horizontal time base range 50S/div ~ 10nS/div Maximum test voltage 40 V (1X probe), 400 V (10X probe) Storage depth 240Kbit Input resistance 1MΩ Input resistance 8bits Coupling mode AC/DC Trigger mode Single, Normal, Auto Trigger edge Trigger edge External trigger voltage 0 – 40 V 0 – 40 V Display 7 inch – 800*480 Extension ports USB picture export Size 340mm x 140mm x 70mm Weight 1.5kg The integrated DDS function generator can produce the following waveforms: sine square triangle sawtooth anti sawtooth ladder half & full wave exponential wave multi audio sink pulse wave The maximum frequency is 10MHz for the sine wave and 2MHz for all other waveforms (1Hz resolution). All waveforms have a max. output voltage (peak-peak) of 5V.

• Ultra-light, ultra-versatile digital oscilloscope and function generator for beginners and advanced users. The device combines a 1GS/s digital 2-channel oscilloscope with storage for about 1000 screenshots and a digital DDS 12-function generator.
• Included is 5V power supply, USB cable, and 2 probes (1x and 10x). The oscilloscope inputs are protected against a high voltage of up to 400V.
• Make sure you read the manual carefully. It contains some very important hints and instructions, especially in case you are working with higher voltage and higher frequency.
• Dimensions: 340mm x 140mm x 70mm, Weight: 1.4kg
