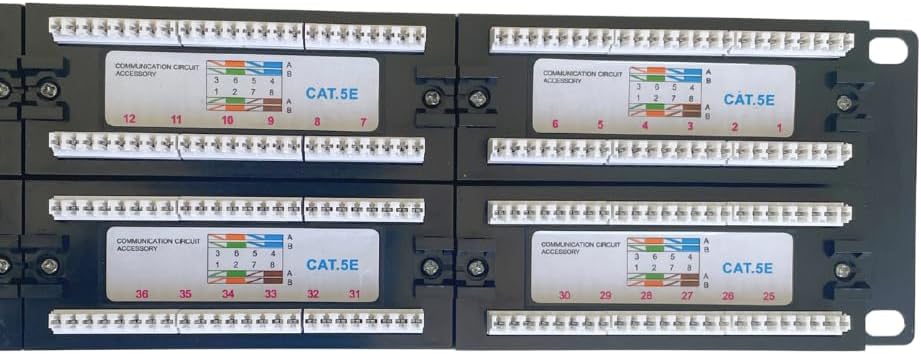

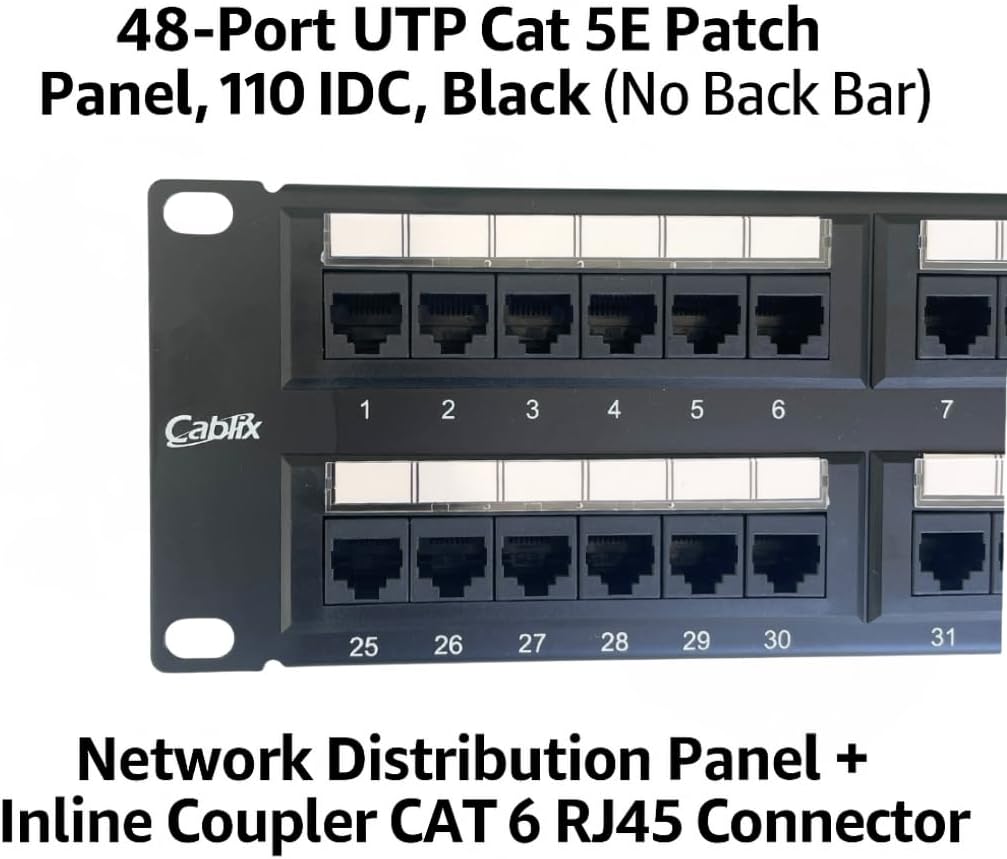

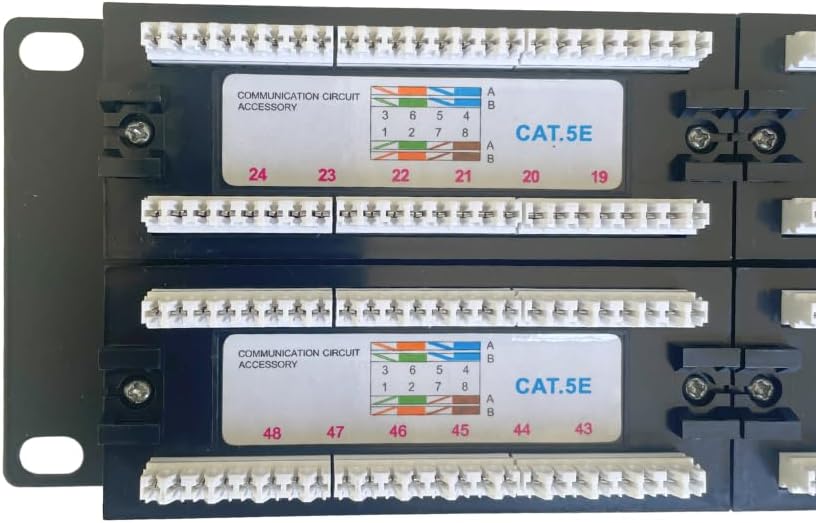

48-Port UTP Cat 5E Patch Panel, 110 IDC, Black (No Back Bar) Network Distribution Panel + Inline Coupler CAT 6 RJ45 Connector

Technical information T568A & T568B wiring. The Cat5e transmission performance is in compliance with the ANSI/TIA 568 B.2 standard. UL listed Specification Material 1. Panel: SPCC, 1.5mm thickness with Black (RAL9005) color painted. 2. RJ45 Jack: 2.1. Housing: ABS, UL 94V-0. 2.2. Contact Bracket: PC, UL 94V-2, transparent color. 3. RJ45 Jack Contact: 3.1. Material: Phosphor Bronze with Nickel plated. 3.2. Finish: 50 micro-inch Gold plated on Plug contact area. 4. IDC: 4.1. Housing: PC+Glass Fiber, UL 94V-2. 4.2. Terminal: Phosphor Bronze with Tin plated. 5. Jack Bracket Set: ABS, UL 94V-0. 6. PCB: FR4, UL 94V-0.

• High-Capacity 48 Ports: Manage large network installations efficiently with 48 ports, ideal for homes, offices, or data centers requiring extensive Ethernet connections.
• 110 IDC Termination: Features 110 IDC (Insulation Displacement Connector) for quick and reliable wiring, ensuring stable and secure network connections with minimal effort.
• Premium Build with Black Finish: Crafted from durable materials, this sleek black patch panel is designed for long-lasting use while adding a professional touch to any network setup.
• No Back Bar for Flexible Installation: The design eliminates the back bar, offering more flexible installation and cable management options for a tidy, efficient setup.
• Included InLine Coupler CAT 6 RJ45 Connector: Comes with a high-quality inline coupler CAT 6 RJ45 connector for easy and reliable network connections, ensuring fast and efficient data transfer.
